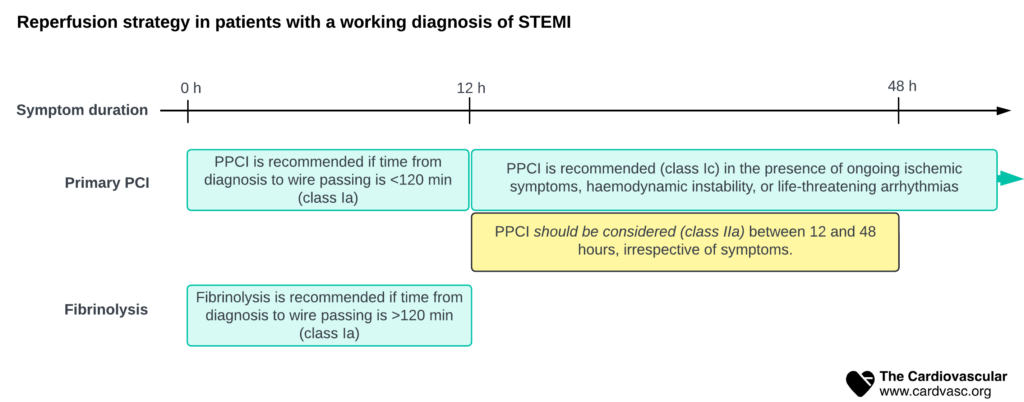

Reperfusion strategy in acute ST elevation acute myocardial infarction (STEMI)

Dr Araz Rawshani, MD, PhD

Associate professor Department of Cardiology, Sahlgrenska University Hospital, Sweden Institute of Medicine, Department of Molecular and Clinical Medicine, Gothenburg, Sweden

More by Dr Araz Rawshani, MD, PhD

Reperfusion therapy is recommended in all patients with a working diagnosis of STEMI (persistent ST-segment elevation or equivalents) and symptoms of ischaemia of ≤12 h duration. (I, A)

Primary PCI
For symptom duration of 0 hours to 12 hours:

PPCI is recommended if the time to wire passing is less than 120 minutes (class Ia).
PPCI is also recommended (class Ic) in unstable patients, including those with recurrent ventricular arrhythmias.

For symptom duration of 12 hours to 48 hours:

PPCI should be considered (class IIa), irrespective of symptoms.

Fibrinolysis: Fibrinolysis is recommended if the time to wire passing is greater than 120 minutes (class Ia) and symptom duration is <12 hours.
