Overview of the cardiac conduction system

Dr Araz Rawshani, MD, PhD

Associate professor Department of Cardiology, Sahlgrenska University Hospital, Sweden Institute of Medicine, Department of Molecular and Clinical Medicine, Gothenburg, Sweden

More by Dr Araz Rawshani, MD, PhD

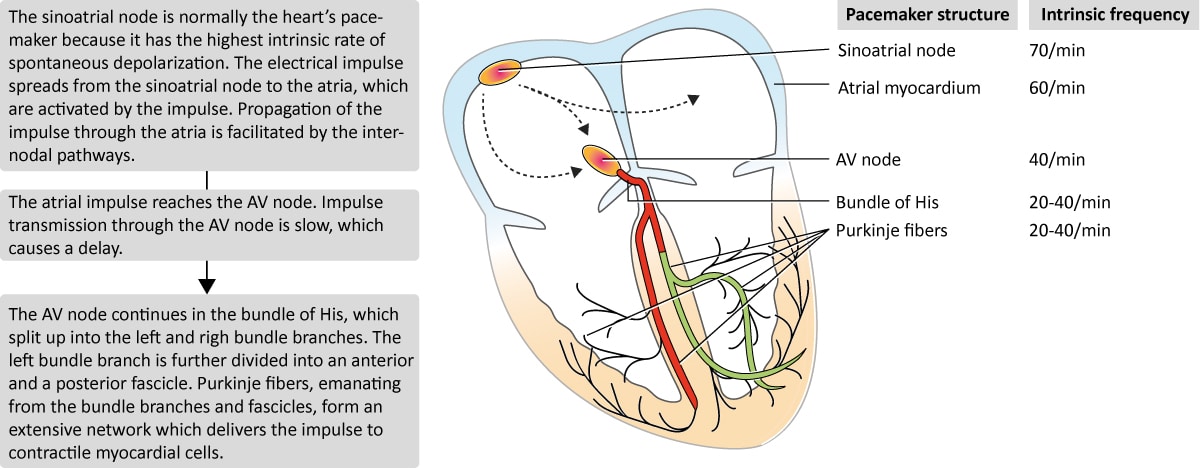

Figure 3. Overview of the chambers, conduction system and the pathway the electrical impulse travels during each cardiac cycle. The right hand side of the figure presents the pacemaker hierarchy of the heart. All structures listed are capable of spontaneous depolarization (automaticity), and thus acting as a pacemaker. The rate of spontaneous depolarization is highest in the sinoatrial node, which is why it acts as the heart’s pacemaker under normal circumstances.
